CI858K01 3BSE018135R1 ABB DriveBus Interface module

CI858K01 3BSE018135R1 ABB DriveBus Interface module

Product Type:Communication_Module
Product Net Depth / Length:127.5 mm
Product Net Height:185 mm
Product Net Width:59 mm
Product Net Weight:0.55 kg

CI858K01 3BSE018135R1 ABB DriveBus Interface module

CI858K01 3BSE018135R1 ABB DriveBus Interface module

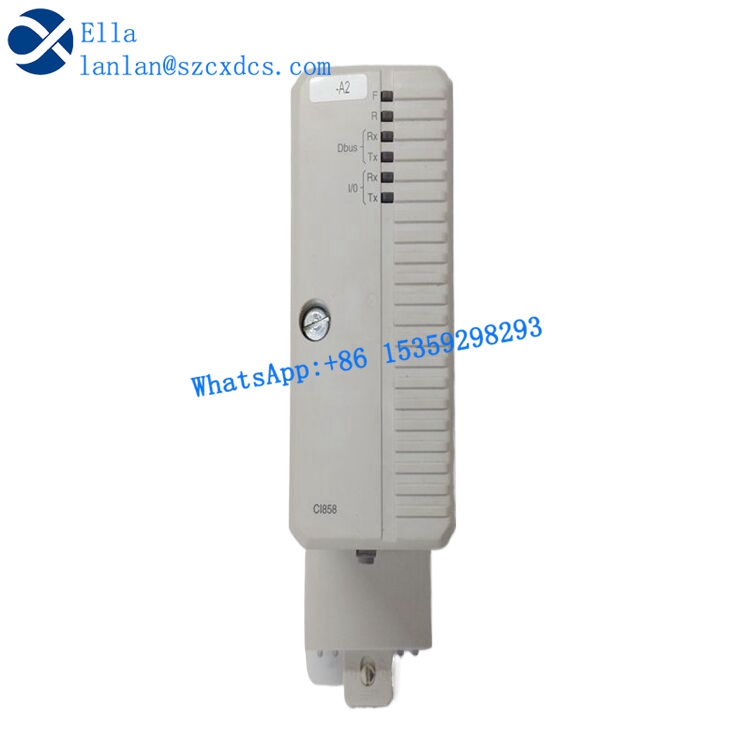

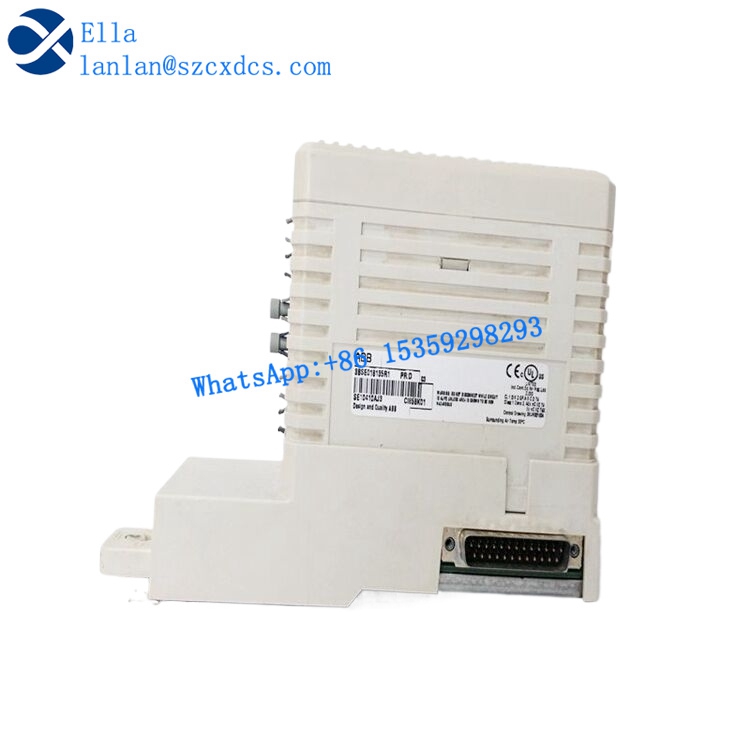

The CI858, shown in Figure 33 on page 88, has three optical connectors. DriveBus connector for connection of ABB Drives, I/O connection, and a Tool connection for downloading firmware to the communication unit with the ABB Drives tools DriveDebug or DriveWindow. The base plate has a preset, two letter Alpha code lock, to prevent the installation of an incorrect type of unit onto the TP858 base plate.The CI858 is powered by the processor unit, via the CEX-Bus, and therefore does not require any additional external power source.Firmware cannot be downloaded to the CI858 communication interface unit via Ethernet. Download of firmware to CI858 requires a Drives-specific download package. For information on how to download firmware to CI858, see ABB Drives documentation. CI858 cannot be used in a High Integrity controller.A maximum of two CI858 modules is supported per AC 800M controller.

The major features of the AC 800M are:

• High performance and large application memory.
• Extensive availability.
• CPU redundancy(PM858/PM861/PM862/PM864/PM865/PM866/PM867/PM891).
• AC 800M High Safety Integrity Level 2 certified using PM865/SM810/SM811 or PM867/SM812.
• AC 800M High Safety Integrity Level 3 certified using PM865/SM811 or PM867/SM812.
• Built-in redundant Ethernet channels.
• Built-in RS-232C channels.
• Sectioned CEX-Bus using a pair of BC810 / BC820.
• Quick and simple fault-finding with the aid of LEDs on each unit / channel.
• Built-in battery back-up of memory (except for PM891).
• External battery back-up.
• Use of industry standard power supply voltage – 24V d.c.
• Easy mounting on standard DIN rail.
• IP20 Class protection without the requirement for enclosures.
• Incorporation of a wide variety of communication possibilities.
• Hardware based on standards for optimum communication connectivity(Ethernet, PROFIBUS DP).
• Support for PROFIBUS DP fieldbus.
• Support for FOUNDATION Fieldbus.
• Support for Advant Fieldbus 100.
• Support for Modbus TCP
