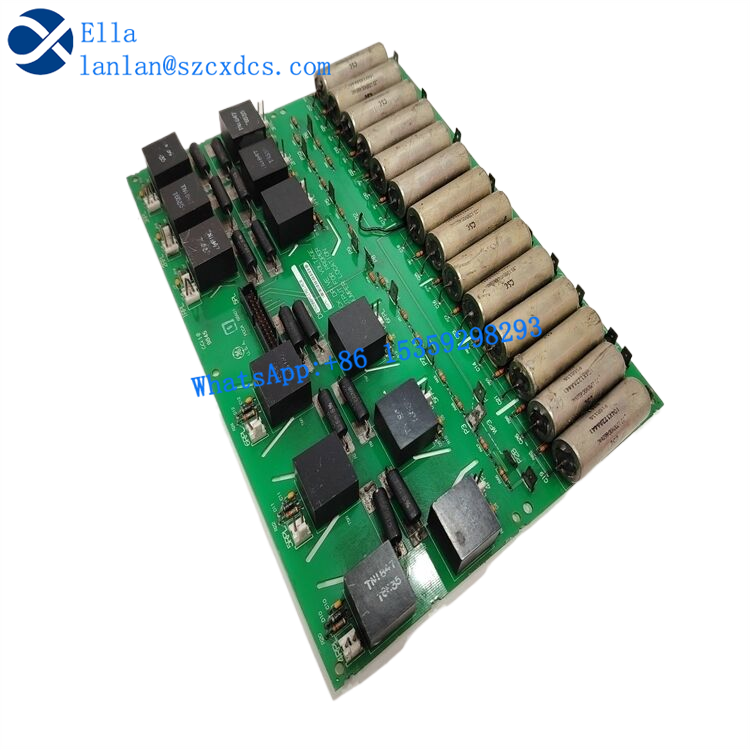

GE DS200PCCAG1ACB Power Connect Card

DS200PCCAG1ACB is a field power amplifier board produced by General Electric (GE) for Mark V series control systems, also known as a power connection card component. This component plays a key role in the Mark V series control system, with main functions including:
Power distribution and monitoring: DS200PCCAG1ACB is responsible for providing the required power supply voltage to various modules in the system, and monitoring parameters such as voltage and current of the power supply to ensure stable operation of the system.
Interface function: As the interface between the driver control circuit and the SCR power bridge, DS200PCCAG1ACB transmits signals to the SCR bridge through a pulse transformer transmission gate to ensure normal signal transmission.
Signal Conversion and Transmission: This component is capable of converting digital signals into analog signals, providing the necessary control signals for the driver, and is responsible for transmitting control signals to ensure normal communication between the driver and the control system.
Protection function: It has overcurrent, overvoltage and other protection functions to protect the system from damage.

DS200PCCAG1ACB technical specifications:
Input voltage: Typically 24V DC, but the specific voltage range should refer to the official technical documentation.
Output current: 10A.
Working temperature range: -40 ℃ to+70 ℃.
Size: 120mm x 80mm x 40mm.
Communication interface: RS485.
DS200PCCAG1ACB is a highly reliable and durable module widely used in industrial control systems, especially in complex systems that require precise and efficient control capabilities.
