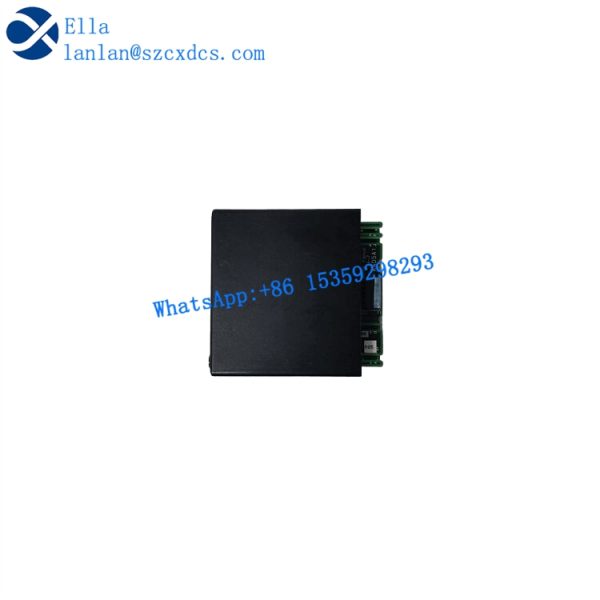

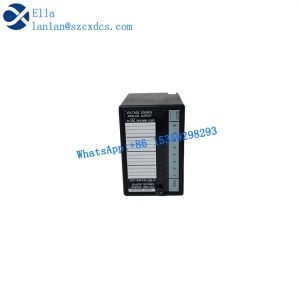

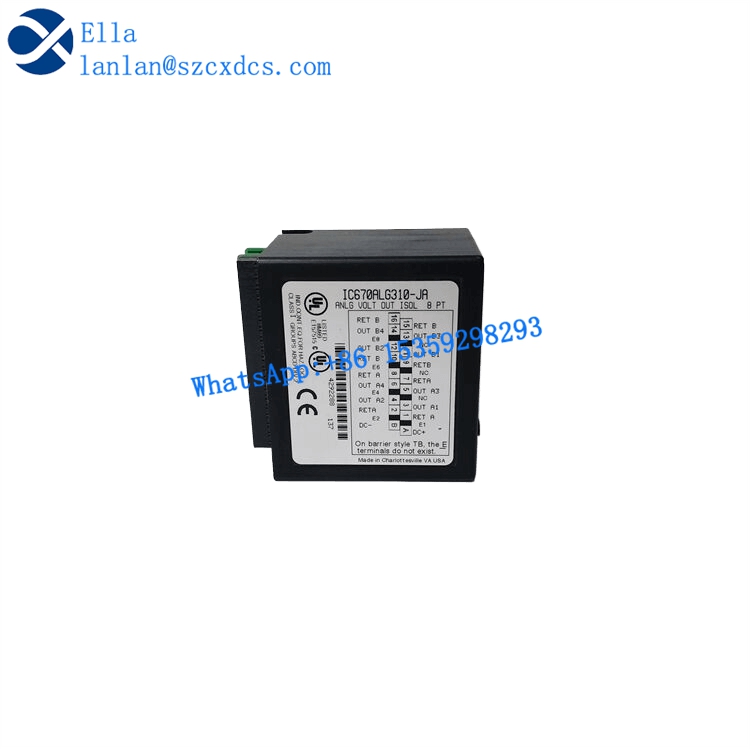

IC670ALG310 GE Fanuc Rx7i PACsystem analog output module
| Brand：GE Fanuc |
| Series：Rx7i PACsystem |
| Part Number：IC670ALG310 |
| Description：Analog output module |
| Voltage：-10 to 10 Volts |
+86 15359298293

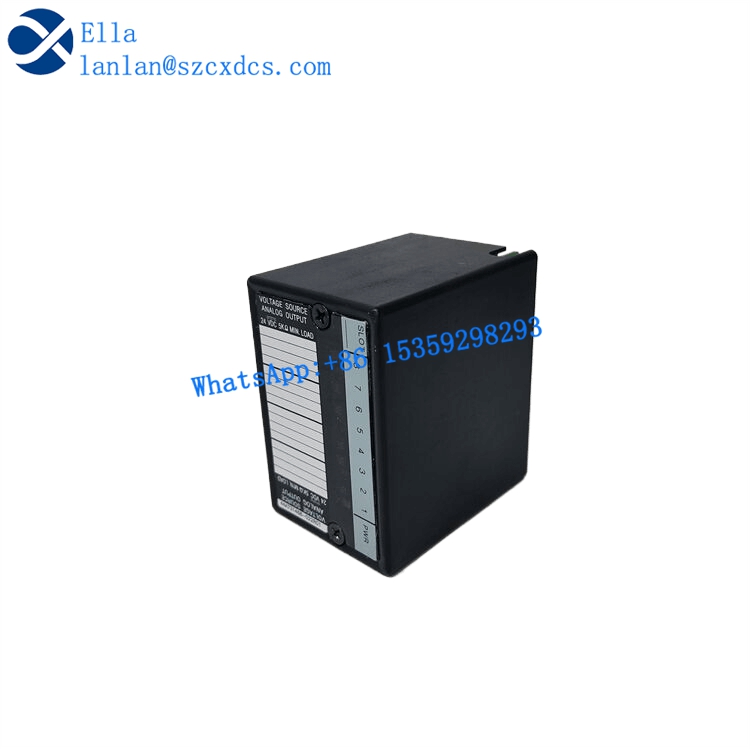

IC670ALG310 GE Fanuc Rx7i PACsystem analog output module
| Over/Under Range | 50 mV |
| Current Drawn From Bus | 170 mA |
| Resolution | 14 bits |
| Magnitude | 14 bits |
| Input Data | 0-8 words, 0-3 bytes, 0-2 bytes |
The GE IC670ALG310 module is a voltage-source analog output module. It is designed with 8 different channels for voltage outputs that can be auto scaled as configured by the operators. The module takes the input from the bus interface unit that is connected to it and enhances the data for calibration and converts the data into output voltage in a range between -10 and +10 Volts. The IC670ALG310 output module has enhanced diagnostics. It can easily detect over range and under range situations, loss of user power, and an uncalibrated module. The output module also features alarms that can be set by the users for different events. The module treats output values as under range and over range when they do not meet the th 50 millivolts requirement of module’s maximum or minimum output settings.

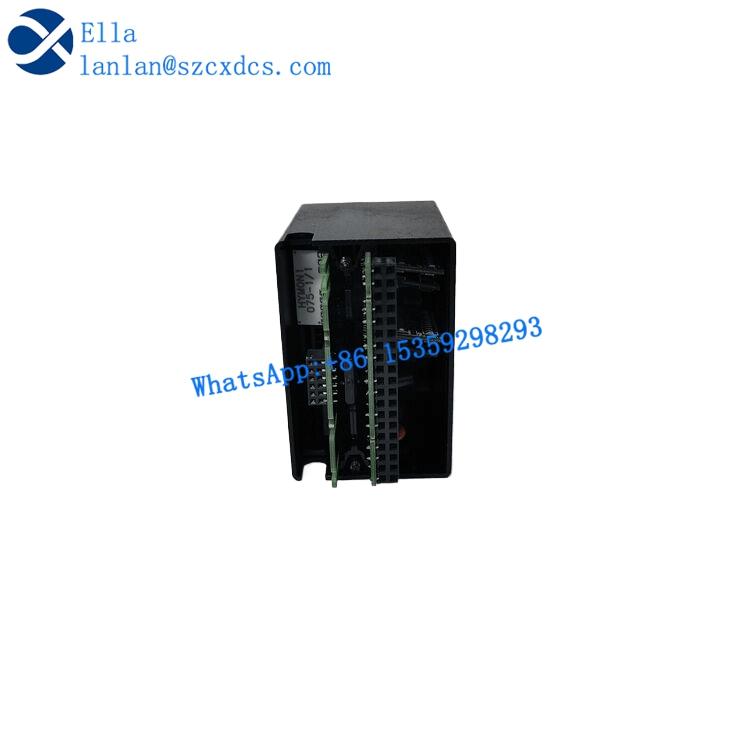

IC670ALG310 GE Fanuc Rx7i PACsystem analog output module
The IC670ALG310 output module is compact in size and it can fit into small spaces. For input data, it takes 0 to 8 words of analog output data, 0 to 3 bytes of input data for the module and channel status, and 0 to 2 bytes of output data for clearing alarms. All of the data exchanges takes place between the output module and the bus interface unit. The IC670ALG310 output module comes with a “Channel Active” feature that lets the operators configure an individual channel as either active or inactive. The module also comes with local output default features that help to configure the data to the default settings or to zero for the module data in the bus interface unit. The module draws 170 milliamps of current from the bus interface. The resolution of the module is 14 bits and the magnitude data size is 14 bits.
