Transient Data Interface I/O Module Bently Nevada 3500/22M 146031-01 Small Card

Brand: Bently Nevada
Part number: 3500/22M
Origin: United States
Minimum order quantity: 1
Guarantee period: one year
Delivery time: 3-5 days after payment
Delivery methods: EMS, FedEx, Debon
Condition: In stock, brand new
Payment method: T/T, PayPal, Western Union remittance



Telephone

+86 15359298293

Product Description

Transient Data Interface I/O Module Bently Nevada 3500/22M 146031-01 Small Card

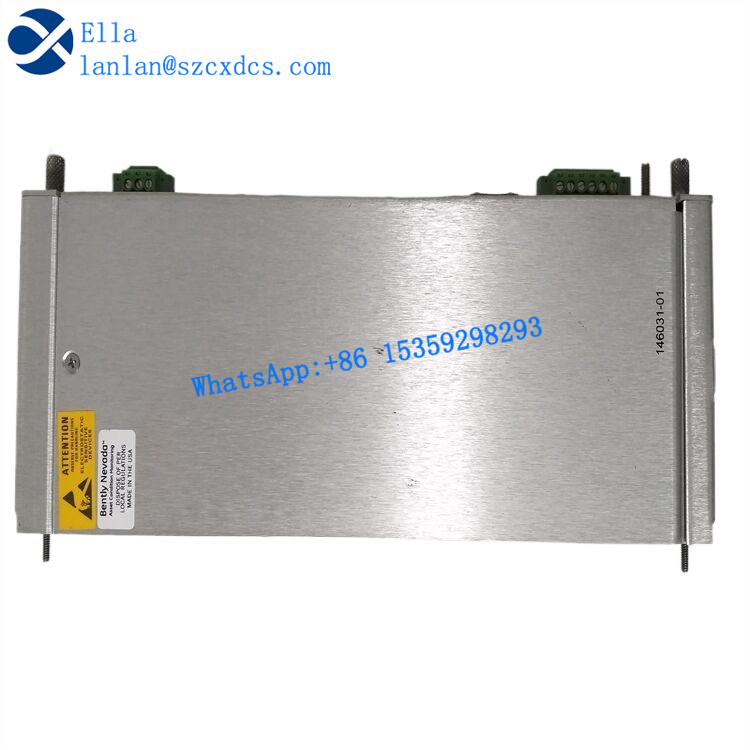

BENTLY 146031 01 8

350015 1

3500/22M 146031-01 Main functions:
Data Interface: As a 10Base-T/100Base-TX I/O module component of the 3500/22M system, this small card is a critical interface between the 3500 monitoring system and related software (such as System 1 status monitoring and diagnostic software, 3500 system configuration software).
Data collection: It has built-in static data capture function and can record dynamic and high-resolution transient data by installing optional channel enable disks.
Communication processing: The 3500 rack includes the communication processing function of the small card, which connects the 3500 monitoring system to Bentley Nevada’s System 1 mechanical management software.
3500/22M 146031-01 Technical features:
Combining Function: Integrate the functionality of the 3500/20 Rack Interface Module (RIM) with the data collection function of communication processors (such as TDXnet).
Working position: Working together with M-series monitors (such as 3500/40M, 3500/42M, etc.) in the RIM slot of a 3500 rack, continuously capturing steady-state and transient waveform data.
Data transmission: The captured data is transmitted to the host software through an Ethernet link.
3500/22M 146031-01 Installation and Configuration:
Installation location: This small card only occupies one slot in the rack, usually located near the power supply slot (such as slot 1).
TMR application: For Triple Modular Redundancy (TMR) applications, the 3500 system requires the TMR version of TDI, which performs a “monitoring channel comparison” function in addition to all conventional TDI functions.
