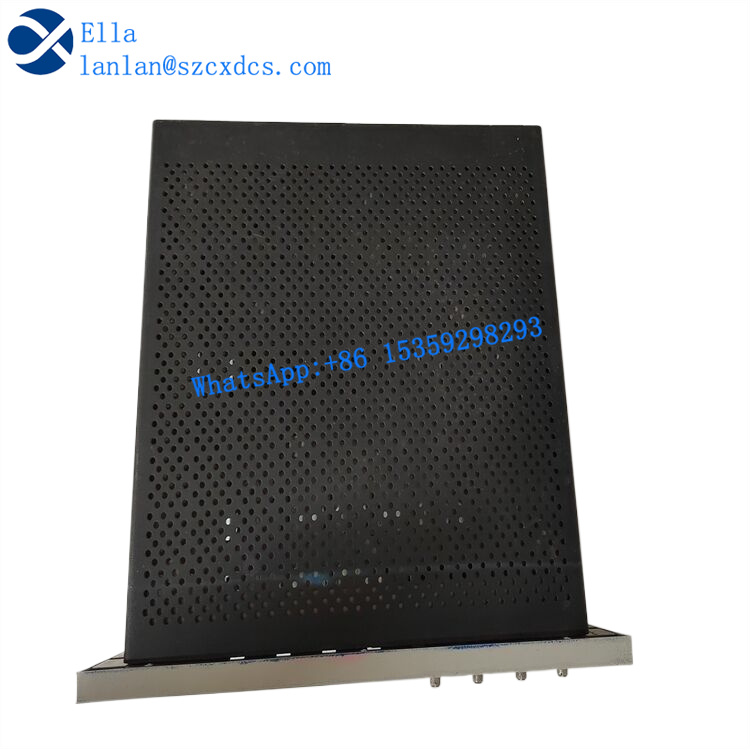

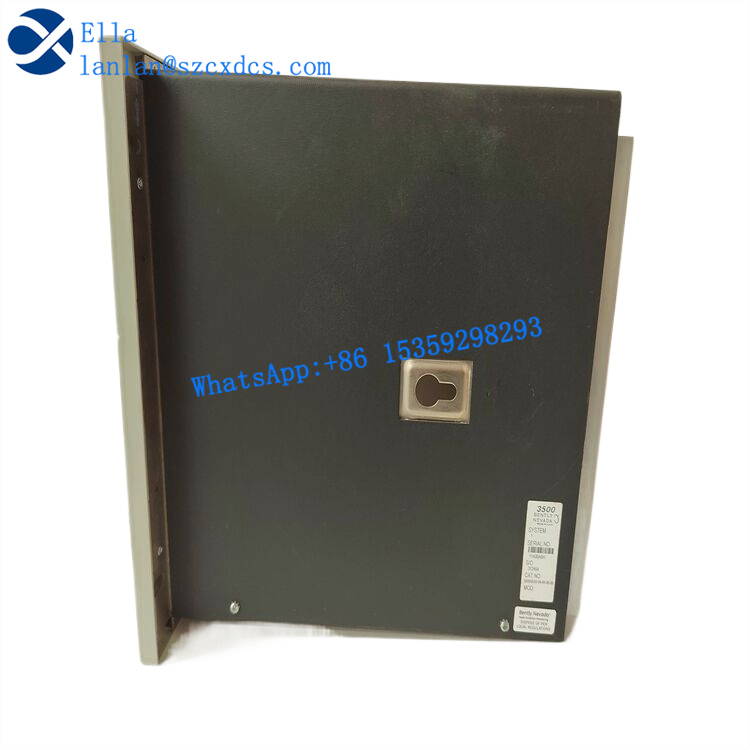

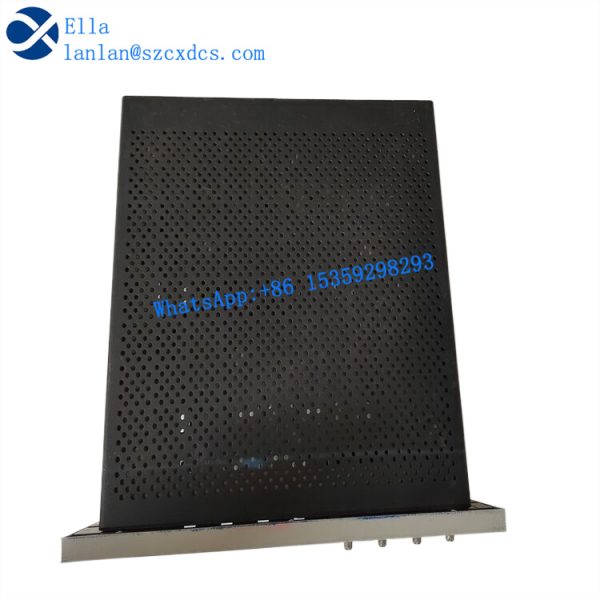

3500/05-02-04-00-00 Technical specifications:
Size: There are two sizes to choose from. The full-size frame is a 19 inch EIA frame with 14 available module slots; The mini frame is a 12 inch frame with 7 available module slots.
Installation form: Supports three installation methods, including panel installation, frame installation, and wall panel installation. For mini frames, there are only two options: panel installation and frame installation.
Power and Interface: The power and frame interface modules must be installed in the two leftmost slots, while other modules can be installed in other positions.
3500/05-02-04-00-00 Module Compatibility:
This framework is compatible with multiple modules, including vibration monitoring module, temperature monitoring module, speed monitoring module, etc. These modules are usually connected to the central data acquisition system to transmit vibration, temperature, speed and other data to the monitoring and control system.
3500/05-02-04-00-00 Alarm and notification functions:
The system usually has an alarm function, which can send notifications to operation and maintenance personnel when abnormalities are detected, so as to take timely measures.
3500/05-02-04-00-00 Electromagnetic Compatibility (EMC):
The framework complies with multiple electromagnetic compatibility standards, including BNC 136669 CE electromagnetic radiation index, BNC 134036 low-voltage index, EN 50081-2, EN 55011 (Class A), EN 50082-2, EN 61000-4-2 (Standard B), ENV 50140 (Standard A), ENV 50141 (Standard A), EN 61000-4-4 (Standard B), and EN 61000-4-5 (Standard B).
